Sinopec

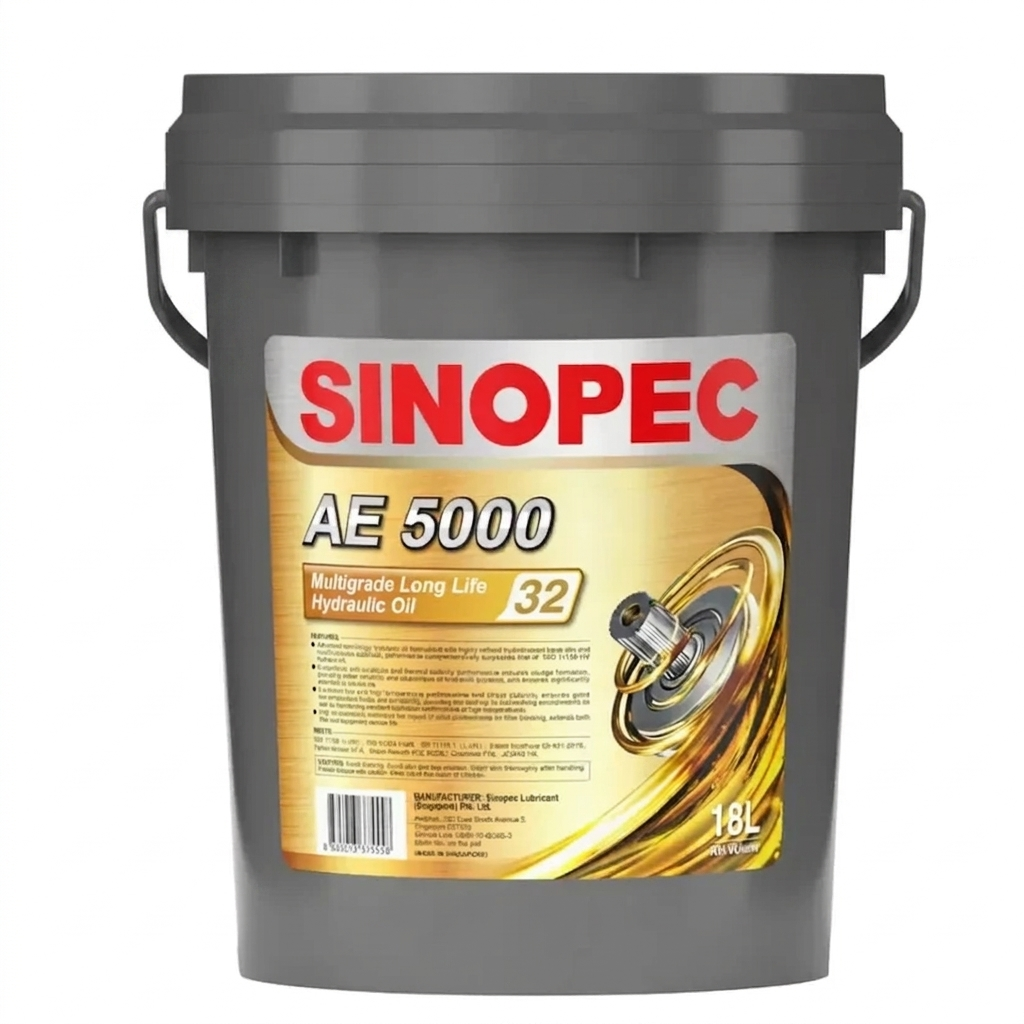

AE 5000 Multigrade Long Life Hydraulic Oil ISO 32 - 5 Gallon Pail

AE 5000 Multigrade Long Life Hydraulic Oil ISO 32 - 5 Gallon Pail

609160063012421

$119.00 CAD
$0.00 CAD $119.00 CAD

SPC-HY-AE5000-32-5G

View full details
Product Data Sheet PDF PDF Download

Product Description

SINOPEC AE 5000 Multigrade Long Life Hydraulic Oil is a line of premium quality anti-wear lubricants formulated with highly refined mineral oils, combined with high-quality multifunctional additives and available in viscosity range from ISO Grade 32 to 68. This line of hydraulic oils, with high viscosity index, low pour point and significantly extended oil service life, has been designed to meet the requirements of moderate-to-high pressure hydraulic systems and that of major hydraulic pump manufacturers, and its applications include wide variety of industrial, marine and mobile equipment requiring extended oil change interval, especially in cold regions or where significant ambient temperature variations or very harsh working conditions are encountered.

Package Details

  • Size: 5 Gallon Pail
  • Weight: 18 kg (5 Gallons)
  • SKU: SPC-HY-AE5000-32-5G

Features & Benefits

  • Advanced technology hydraulic oil formulated with highly refined hydrotreated base oils and multifunctional additives, performance comprehensively surpasses that of ISO 11158 HV hydraulic oil.
  • Exceptional anti-oxidation and thermal stability performance reduces sludge formation, providing better reliability and cleanliness of hydraulic systems, and ensures significantly extended oil service life.
  • Excellent low and high temperature performance and shear stability, ensures good low-temperature fluidity and pumpability, providing fast start-up in cold working environments as well as maintaining excellent lubrication performance at high temperatures.
  • Superior and long-lasting anti-wear properties under high load operation, together with excellent low temperature performance, water separation, air release and anti-foam characteristics ensures robust protection and efficient operation of the hydraulic system.
  • Excellent comprehensive performance, providing all-round anti-corrosion and lubrication protection for the hydraulic system.
  • Fully compatible with common seal materials usually found in hydraulic systems, to extend seal life and prevent fluid leakage.
  • High cleanliness property (NAS 7 or better at the point of filling) minimizes the impact of solid contaminants on filter blocking, extends both filter and equipment service life.

Technical Specifications

Typical Properties

PropertyValueTest Method
Viscosity grade32
Kinematic Viscosity
cSt @ 40℃
cSt @ 100℃
33.75
6.7		ASTM D445
Viscosity Index160ASTM D2270
Air Release Time @ 50℃, mins5ASTM D3427
Foaming (Tendency/Stability), mL/mL
Seq.I
Seq.II
Seq.III
0/0
15/0
0/0		ASTM D892
Acid Number, mgKOH/g0.75ASTM D664
Anti-Rust, Procedure BRust-FreeASTM D665
Copper Corrosion @ 100℃ for 3hrs1aASTM D130
Water Separability (40-37-3, 54℃), mins8ASTM D1401
Pour Point, ℃-45ASTM D97
Flash Point (COC), ℃225ASTM D92
FZG Test (A/8.3/90), Fail Load Stage12ASTM D5182

These data are given as an indication of typical values, not as exact specifications.

SINOPEC AE 5000 Multigrade Long Life Hydraulic Oil meets the performance requirements of the following industry specifications:

Industry Specifications

ISO11158 (L-HV)
DIN51524 Part 3 (HVLP)
GB11118.1 (L-HV)
JCMASHK (VG 32, VG 46)

SINOPEC AE 5000 Multigrade Long Life Hydraulic Oil meets the performance requirements of the following OEM specifications:

OEM Specifications

Danfoss Vickers (Previously Eaton)brochure 03-401-2010 (VG 32, VG 46, VG 68)
Parker-DenisonHF-0 (VG 32, VG 46, VG 68)
Bosch RexrothRDE 90235 (VG 32, VG 46, VG 68)
CincinnatiP-68 (VG 32), P-69 (VG 68), P-70 (VG 46)

Suitable Applications

SINOPEC AE 5000 Long Life Hydraulic Oil is suitable for use in:

  • Hydraulic applications in a wide variety of industrial, marine and mobile equipment.
  • Vane and gear pumps under high loads, as recommended by pump manufacturers.
  • Severe service hydraulic systems, employing axial and radial piston pumps, as recommended by pump manufacturers.
  • Moderate-to-high pressure hydraulic systems operating outdoors in cold regions or where there is a wide variation in ambient temperature or harsh working conditions, such as hydraulic systems of construction, mining, oil industries, marine, machine tools and various stationary hydraulic equipment.
