Product Description

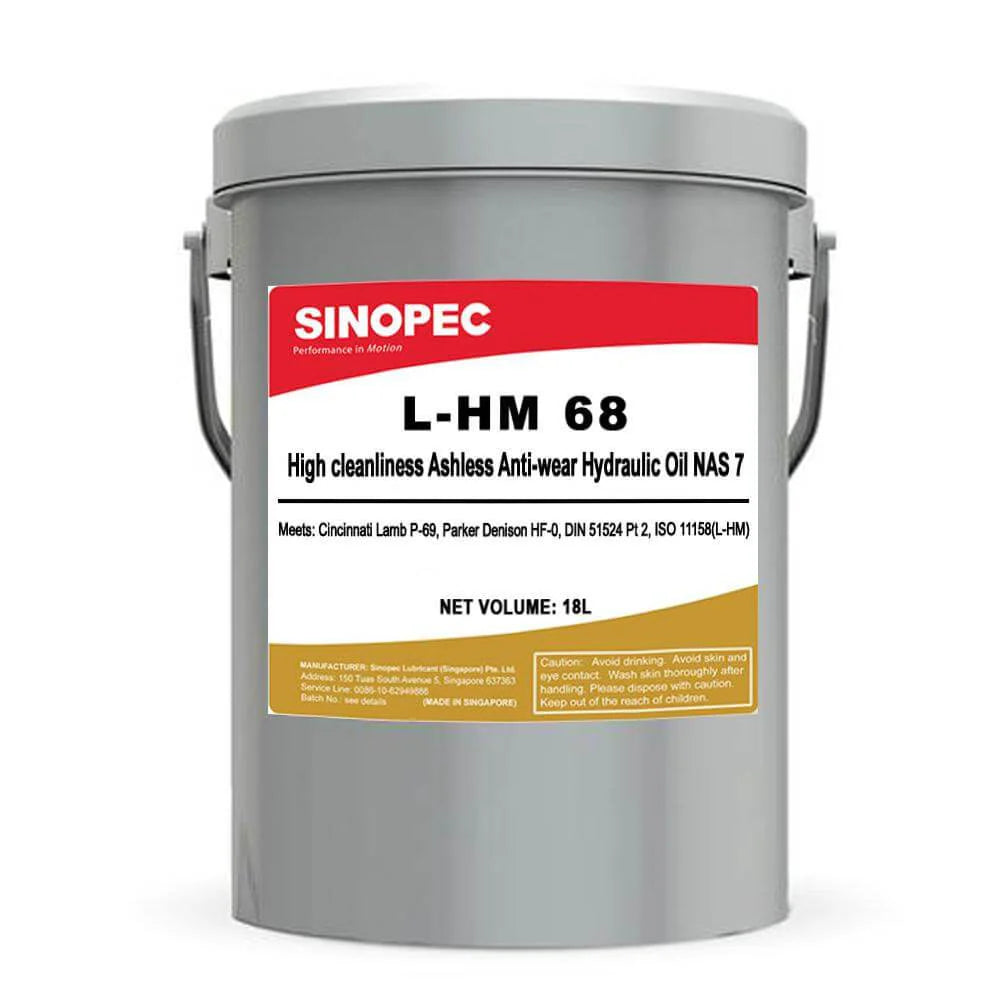

SINOPEC High Pressure Ashless Antiwear Hydraulic Oil L-HM ISO 68 - 5 Gallon Pail

Premium quality hydraulic oil designed for Canadian industrial applications.

Package Details

  • Size: 5 Gallon Pail
  • Weight: 18 kg (5 Gallons)
  • SKU: SPC-HY-LHMA-68-5G

Features & Benefits

Technical Features

  • The non-zinc, ashless antiwear additive system is non-corrosive to silver and yellow metal alloys, and so is fully compatible with hydraulic pumps containing either silver or copper components, thus prolonging pump life.
  • High-quality base oils combined with ashless additive technology provide outstanding antiwear properties, rust protection, low deposit formation, good demulsibility, oxidation resistance, good antifoam properties and fast air release properties, to protect and extend the life of hydraulic pumps and systems.
  • Good hydrolytic stability and filterability, ensure optimum product life and performance, and prevent filter blocking.
  • High viscosity index gives good viscosity characteristics over a wide temperature range. the wide selection of Viscosity grades ensures that the optimum viscosity can be used for any hydraulic system operating temperature.
  • Fully compatible with common seal materials usually found in hydraulic systems, to extend seal life and prevent fluid leakage.

Technical Specifications

Typical Properties

ISO viscosity grade68
Kinematic viscosity, ASTM D445
cSt @ 40℃
cSt @ 100℃
68.05
8.56
Viscosity index, ASTM D227097
Air release at 50℃, min, ASTM D34278
Foaming characteristics, sequences 1, 2 and 3, ml/ml, ASTM D89210/0
10/0
15/0
Neutralisation number, mg·KOH/g, ASTM D9740.28
FZG test (A/8.3/90) , fail load stage, DIN 5134512
Rust prevention, ASTM D665
Distilled water
Synthetic sea water
Pass
Pass
Copper corrosion, 3 hours @ 100℃, class, ASTM D1301b
Water separability, min, ASTM D271110 (54℃)
Pour point, ℃, ASTM D97-12
Flash point (COC) , ℃, ASTM D92248

These data are given as an indication of typical values and not as exact specifications.

SINOPEC high pressure ashless antiwear hydraulic oil L-HM meets the performance requirements of the following industry specifications:

Industry Specifications

DIN51524 Pt 2
ISO11158 (L-HM)

1 Note: ‘GB’ standards are the National Standards of the People’s Republic of China.

SINOPEC high pressure ashless antiwear hydraulic oil L-HM meets the performance requirements of the following OEM specifications:

OEM Specifications

Cincinnati LambCincinnati Lamb
Parker DenisonParker Denison

SINOPEC high pressure ashless antiwear hydraulic oil L-HM holds the following OEM approvals:

OEM Approvals

Cincinnati LambCincinnati Lamb
Parker DenisonParker Denison

Suitable Applications

Applications

  • Suitable for severe hydraulic applications, such as in vane pumps and/or piston pumps running under high-pressure conditions.
  • Suitable for high-precision hydraulic systems containing copper or silver components.

Caution: Avoid mixing SINOPEC high pressure ashless antiwear hydraulic oil L-HM grades with non-ashless antiwear hydraulic oils as this may be detrimental to their performance.
