Sinopec

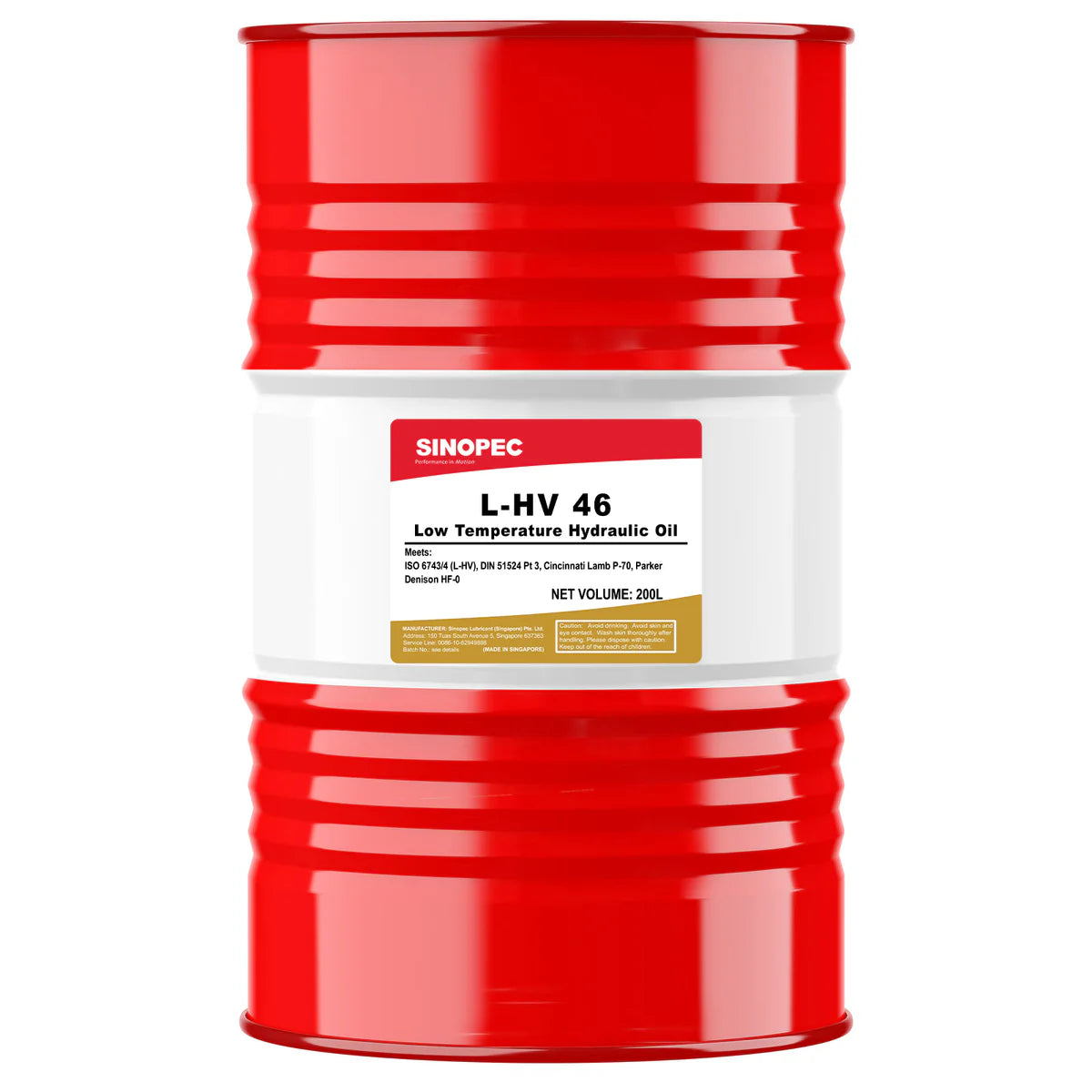

L-HV Low Temperature Anti-Wear Hydraulic Oil ISO 46 - 55 Gallon Drum

L-HV Low Temperature Anti-Wear Hydraulic Oil ISO 46 - 55 Gallon Drum

609160060206614

$1,189.00 CAD
$0.00 CAD $1,189.00 CAD
Sale Sold out

SPC-HY-LHV-46-55G
View full details
Product Data Sheet PDF PDF Download
Safety Data Sheet PDF PDF Download

Product Description

SINOPEC L-HV Low Temperature Anti-Wear Hydraulic Oil is a line of premium quality anti-wear lubricants blended using highly refined mineral oils, combined with a multifunctional additive system and available in a wide viscosity range from ISO Grade 15 to 100. This line of hydraulic oils, with high viscosity index and low pour point characteristics, has been designed to meet the requirements of moderate-to-high pressure hydraulic systems operating outdoors in cold regions, or where there is a wide variation in ambient temperature.

Package Details

  • Size: 55 Gallon Drum
  • Weight: 205 kg (55 Gallons)
  • SKU: SPC-HY-LHV-46-55G

Features & Benefits

  • High viscosity index combined with low pour point ensures excellent low-temperature fluidity and provides excellent low-temperature start up, protecting the hydraulic system from wear and extending service life of equipment.
  • Excellent shear stability properties ensure good oil film thickness is maintained in severe operating conditions, protecting the components of the hydraulic system.
  • High-quality base oils combined with multifunctional additive technology provide anti-wear properties, rust protection, low varnish and deposit formation, good demulsibility, anti-oxidation, good anti-foaming and fast air release properties, to protect and extend the life of hydraulic pumps and systems.
  • Good hydrolytic stability and filterability, ensure optimum product life and performance, and prevent filter blocking.
  • The wide selection of viscosity grades ensures that the optimum viscosity can be used for hydraulic system operating temperature.
  • Fully compatible with common seal materials usually found in hydraulic systems, to extend seal life and prevent fluid leakage.
  • High cleanliness property (NAS 7 or better at the point of filling) minimizes the impact of solid contaminants on filter blocking, extends both filter and equipment service life

Technical Specifications

Typical Properties

PropertyValueTest Method
Viscosity grade46
Kinematic Viscosity
cSt @ 40℃
cSt @ 100℃
46.49
8.33		ASTM D445
Viscosity Index156ASTM D2270
Air Release Time @ 50℃, mins4.1ASTM D3427
Foaming (Tendency/Stability), mL/mL
Seq.I
Seq.II
Seq.III
20/0
20/0
20/0		ASTM D892
Acid Number, mg KOH/g0.59ASTM D664
Anti-Rust, Procedure BRust-FreeASTM D665
Copper Corrosion @ 100℃ for 3hrs1aASTM D130
Water Separability (40-37-3,54℃), mins9ASTM D1401
Water Separability (40-37-3,82℃), mins-ASTM D1401
Pour Point, ℃-37ASTM D97
Flash Point (COC), ℃248ASTM D92
FZG Test (A/8.3/90), Fail Load Stage12ASTM D5182

These data are given as an indication of typical values, not as exact specifications.

SINOPEC L-HV Low Temperature Anti-Wear Hydraulic Oil meets the performance requirements of the following industry specifications:

Industry Specifications

ISO11158 (L-HV)
DIN51524 Part 3 (HVLP)
GB11118.1 (L-HV)

SINOPEC L-HV Low Temperature Anti-Wear Hydraulic Oil meets the performance requirements of the following OEM specifications:

OEM Specifications

Danfoss Vickers (Previously Eaton)brochure 03-401-2010 (VG 32, VG 46, VG 68)
Parker-DenisonHF-0, HF-1, HF-2 (VG 32, VG 46, VG 68)
Bosch RexrothRDE 90235 (VG 32, VG 46, VG 68)
CincinnatiP-68 (VG 32), P-69 (VG 68), P-70 (VG 46)

Suitable Applications

SINOPEC L-HV Low Temperature Anti-Wear Hydraulic Oil is suitable for use in:

  • Moderate-to-high pressure hydraulic systems operating outdoors in severe cold regions or where there is a wide variation in ambient temperature, such as in the marine, construction, mining and oil industries.
  • Vane and gear pumps operating under high pressure and low temperatures, as recommended by pump manufacturers.
  • Severe service hydraulic systems, employing axial and radial piston pumps, as recommended by pump manufacturers.
